Metal Oxide Varistor

HOME > Product Category > Metal Oxide Varistors

Cheng Tung specializes in the expert production of metal oxide varistor products. We can supply a wide range of safety capacitors meet and are certified to applicable international safety standards of total eight countries. Our metal oxide varistor product quality is reliable and certified by UL, CUL, VDE, NEMKO, ENEC, CQC, EK. Your purchase of our products will be highly appreciated and much welcome!
Quantity:
Metal Oxide Varistor

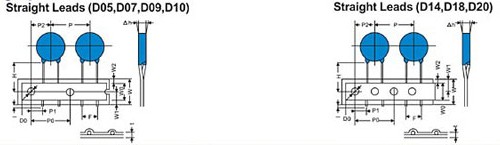

Taping Specification:

Symbol
Series
Parameter
05D
07D
09D
10D
14D
18D
20D
P
Pitch of Component
12.7 ± 1.0
12.7 ± 1.0
12.7 ± 1.0
15.0 ± 1.0
25.4 ± 1.0
25.4 ± 1.0
25.4 ± 1.0
P0
Feed Hole Pitch
12.7 ± 0.3
12.7 ± 0.3
12.7 ± 0.3
15.0 ± 0.3
25.4 ± 1.0
25.4 ± 1.0
25.4 ± 1.0
P1
Feed Hole Center to Lead
3.85 ± 0.7
3.85 ± 0.7
3.85 ± 0.7
3.75 ± 0.7
8.95 ± 0.7
7.7 ± 0.7
7.7 ± 0.7
P2
Hole Center to Component Center
6.35 ± 1.3
6.35 ± 1.3
6.35 ± 1.3
7.5 ± 1.3
12.7 ± 1.3
12.7 ± 1.3
12.7 ± 1.3
F
Lead to Lead Distance
5.0 ± 0.8
5.0 ± 0.8
5.0 ± 0.8
7.5 ± 0.8
7.5 ± 0.8
10.0 ± 0.8
10.0 ± 0.8
Δh
Component Alignment
0 ± 2
0 ± 2
0 ± 2
0 ± 2
0 ± 4
0 ± 4
0 ± 4
W
Tape Width
18.0 ± 1.0
18.0 ± 1.0
18.0 ± 1.0
18.0 ± 1.0
18.0 ± 1.0
18.0 ± 1.0
18.0 ± 1.0
W0
Hole Down Tape Width
12.5max
12.5max
12.5max
12.5max
12.5max
12.5max
12.5max
W1
Hole Position
9.0 ± 0.5
9.0 ± 0.5
9.0 ± 0.5
9.0 ± 0.5
9.0 ± 0.5
9.0 ± 0.5
9.0 ± 0.5
W2
Hole Down Tape Position
3.0max
3.0max
3.0max
3.0max
3.0max
3.0max
3.0max
H
Height from Tape Center to Component
20.0 ± 2.0
20.0 ± 2.0
20.0 ± 2.0
20.0 ± 2.0
20.0 ± 2.0
20.0 ± 2.0
20.0 ± 2.0
1
Lenght of Clipped Lead
1.0max
1.0max
1.0max
1.0max
1.0max
1.0max
1.0max
D0
Feed Hole Diameter
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
t
Total Tape Thickness
0.6 ± 0.3
0.6 ± 0.3
0.6 ± 0.3
0.6 ± 0.3
0.6 ± 0.3
0.6 ± 0.3
0.6 ± 0.3
unit : mm

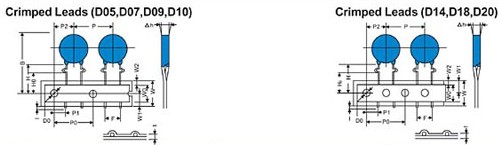

Symbol
Series
Parameter
05D
07D
09D
10D
14D
18D
20D
P
Pitch of Component
12.7 ± 1.0
12.7 ± 1.0
12.7 ± 1.0
15.0 ± 1.0
25.4 ± 1.0
25.4 ± 1.0
25.4 ± 1.0
P0
Feed Hole Pitch
12.7 ± 0.3
12.7 ± 0.3
12.7 ± 0.3
15.0 ± 0.3
25.4 ± 1.0
25.4 ± 1.0
25.4 ± 1.0
P1
Feed Hole Center to Lead
3.85 ± 0.7
3.85 ± 0.7
3.85 ± 0.7
3.75 ± 0.7
8.95 ± 0.7
7.7 ± 0.7
7.7 ± 0.7
P2
Hole Center to Component Center
6.35 ± 1.3
6.35 ± 1.3
6.35 ± 1.3
7.5 ± 1.3
12.7 ± 1.3
12.7 ± 1.3
12.7 ± 1.3
F
Lead to Lead Distance
5.0 ± 0.8
5.0 ± 0.8
5.0 ± 0.8
7.5 ± 0.8
7.5 ± 0.8
10.0 ± 0.8
10.0 ± 0.8
Δh
Component Alignment
0 ± 2
0 ± 2
0 ± 2
0 ± 2
0 ± 4
0 ± 4
0 ± 4
W
Tape Width
18.0 ± 1.0
18.0 ± 1.0
18.0 ± 1.0
18.0 ± 1.0
18.0 ± 1.0
18.0 ± 1.0
18.0 ± 1.0
W0
Hole Down Tape Width
12.5max
12.5max
12.5max
12.5max
12.5max
12.5max
12.5max
W1
Hole Position
9.0 ± 0.5
9.0 ± 0.5
9.0 ± 0.5
9.0 ± 0.5
9.0 ± 0.5
9.0 ± 0.5
9.0 ± 0.5
W2
Hole Down Tape Position
3.0max
3.0max
3.0max
3.0max
3.0max
3.0max
3.0max
H
Height from Tape Center to Component
20.0 ± 2.0
20.0 ± 2.0
20.0 ± 2.0
20.0 ± 2.0
20.0 ± 2.0
20.0 ± 2.0
20.0 ± 2.0
H0
Height from Tape Center to Component
16 ± 1
16 ± 1
16 ± 1
16 ± 1
16 ± 1
16 ± 1
16 ± 1
1
Lenght of Clipped Lead
1.0max
1.0max
1.0max
1.0max
1.0max
1.0max
1.0max
D0
Feed Hole Diameter
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
4.0 ± 0.2
t
Total Tape Thickness
0.6 ± 0.3
0.6 ± 0.3
0.6 ± 0.3
0.6 ± 0.3
0.6 ± 0.3
0.6 ± 0.3
0.6 ± 0.3
unit : mm

D05, D07, D09, D10, D14, D18, D20 Metal Oxide Varistor

Product Name : Metal Oxide Varistors

Goods of Description : Metal oxide varistor is a voltage dependent resistor with symmetrical voltage-current characteristics that is designed to protect all kinds of electronic devices or elements from switching and induced lightening surges. It's non linear exponent characteristic with broad using range and mass production is gradually being used by various level of electric engineering.

Features :

  • Fast response time, high performance in surge current handling capability.
  • Low leakage current, high performance in clamping voltage characteristics.

Specification :

Size
D max.
H max.
d ± 0.05
D ± 0.08
D05
7
10
0.6
5
D07
9
12
0.6
5
D09
11
14
0.6
5
D10
13
16
0.8
7.5
D14
17
20
0.8
7.5
D18
22
25
0.8
7.5
D20
25
28
0.8
7.5
1
10


T Thickness (max.) unit:mm
Prat Code
D05
D07
D09
D10
D14
D18
D20
182K
12.5
12.5
12.5
15.6
152K
11
11
11
13.2
112K
7.5
8.5
8.5
8.5
10.1
102K
7.3
8.3
8.3
8.3
9.5
911K
7.1
8.1
8.1
8.1
9
821K
6.9
6.9
7.9
7.9
7.9
8.5
781K
6.7
6.7
7.7
7.7
7.7
8.4
751K
6.5
6.5
6.5
7.5
7.5
7.5
8.2
681K
6.4
6.4
6.4
7.1
7.1
7.1
7.8
621K
6.4
6.4
6.4
7.1
7.1
7.1
7.5
561K
6.2
6.2
6.2
6.7
6.7
6.7
7
511K
5.8
5.8
5.8
6.4
6.4
6.4
6.8
471K
5.6
5.6
5.6
6.1
6.1
6.1
6.6
431K
5.3
5.3
5.3
5.9
5.9
5.9
6.4
391K
5.1
5.1
5.1
5.7
5.7
5.7
6.2
361K
5
5
5
5.5
5.5
5.5
6.2
331K
4.8
4.8
4.8
5.3
5.3
5.3
5.9
301K
4.7
4.7
4.7
5.1
5.1
5.1
5.7
271K
4.5
4.5
4.5
5
5
5
5.6
241K
4.3
4.3
4.3
4.8
4.8
4.8
5.4
221K
4.2
4.2
4.2
4.7
4.7
4.7
5.3
201K
4.1
4.1
4.1
4.5
4.5
4.5
5
181K
4.1
4.1
4.1
4.5
4.5
5
151K
4.8
4.8
4.4
5.2
5.2
5.6
121K
4.5
4.5
4.1
4.9
4.9
5.3
101K
4.3
4.3
3.9
4.7
4.7
5.1
820K
4.1
4.1
3.8
4.5
4.5
4.9
680K
4.5
5.2
4.5
5.3
5.3
5.8
560K
4.5
5
4.4
5.1
5.1
5.7
470K
4.5
4.9
4.2
5
5
5.6
390K
4.5
4.8
4
4.9
4.9
5.5
330K
4.5
4.9
4.5
5
5
270K
4.5
4.7
4.2
4.8
4.8
220K
4.5
4.6
4
4.7
4.7
180L
4.5
4.5
3.8
4.6
4.6

Metal Oxide Varistor Application :

  • IC, diodeor protection thyistor, triac and other semiconductor protection
  • Suppression of mainborne transients in consumer electronics and industrial electronics
